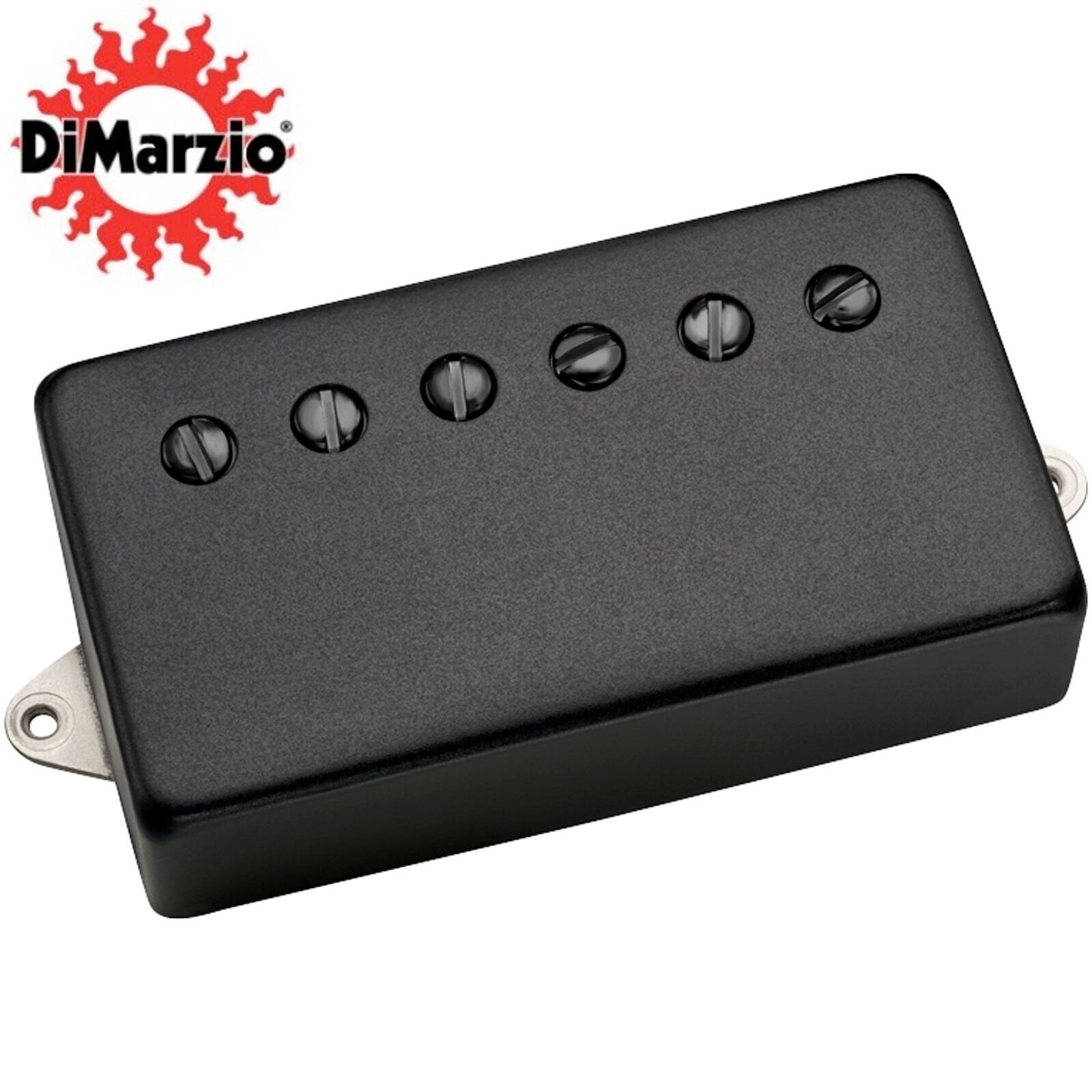

Here are the characteristics that make a great vintage humbucker: a soft
magnetic field, sweet tone, perfect balance between warmth and clarity,
the ability to go from clean to distorted by pick attack alone. For our
PAF® 36th Anniversary Neck we wanted to continue in the path
of pioneers such as Seth Lover (designer of the original Patent Applied
For humbucker) and create pickups that combine all of the
characteristics of great vintage humbuckers. These pickups are not
merely clones. We re-engineered the PAF® using our patented technology and Larry DiMarzios own 1959 cherry sunburst Gibson® Les Paul® as the reference. Larrys Gibson® Les Paul®
has a uniquely amazing sound and its not only due to the pickups —
its the total fusion of many elements of the guitar itself. Although
the pickups have a weak magnetic field, the sound is well defined:
almost like a single-coil. We duplicated the weaker magnetic field in
order to allow the strings to vibrate longer, as well as focus and
articulate the attack and output. We use computer-controlled winders to
consistently layer the 42-gauge custom-coated wire, achieving the exact
frequency response we want. Then its dipped in our custom formula to
eliminate squeal and microphonics. The cover is made from nickel-silver
and our new plating makes it more magnetically transparent than the
originals. The PAF® 36th Anniversary Neck is smooth but not
muddy. It performs equally well in the neck or bridge, just as the best
humbuckers from the 50s did.
There is no reference standard for the sound of a humbucker from the 1950s. All of them had variations in output and tone, and these differences could be quite large. Recently, we have focused our research on making pickups with warm highs and bright lows. This combination is only found in our favorite vintage humbuckers, and its really good for a pickup intended for both the neck and bridge positions. It allows the bass strings in the neck position to avoid muddiness, and the treble strings in the bridge position to be warm and not brittle.
- Recommended For All positions
- Wiring 4 Conductor
- Magnet Alnico 5
- Resistance 7.31 Kohm
