NEW Momentary Push Button KILL SWITCH For Guitar S.P.S.T. - RED BUTTON - SPST
NEW Momentary Push Button KILL SWITCH For Guitar S.P.S.T. - RED BUTTON - SPST
NEW Momentary Push Button KILL SWITCH For Guitar S.P.S.T. - RED BUTTON - SPST

NEW Momentary Push Button KILL SWITCH For Guitar S.P.S.T. - RED BUTTON - SPST

Regular price
$10.08
Regular price
Sale price
$10.08
Unit price
per
Availability
Sold out

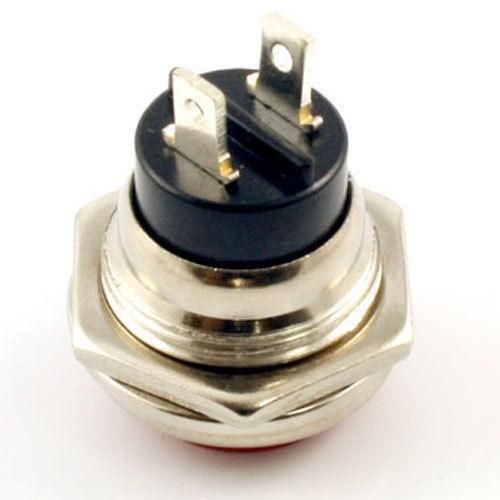

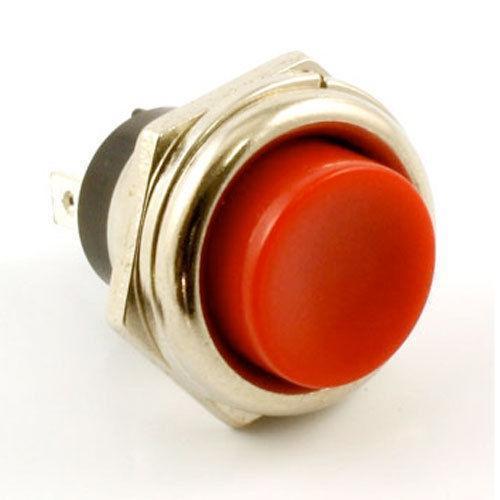

Momentary kill switch. S.P.S.T. normally-closed, momentary push-button. Press to use, release to return. 0.51" diameter red plunger, 0.74" diameter metal bezel. 0.62" diameter threaded bushing mounts in panels up to 0.15" thick. Solder lug terminals attached.

Regardless of the instrument's electronics configuration, this switch should be wired in just before the jack; it will become the second-to-last electronic part in the progression of components.

Example:

Pickups > toggle switch > pots > jack (or a similar configuration)
becomes...
Pickups > toggle switch > pots > momentary kill switch > jack

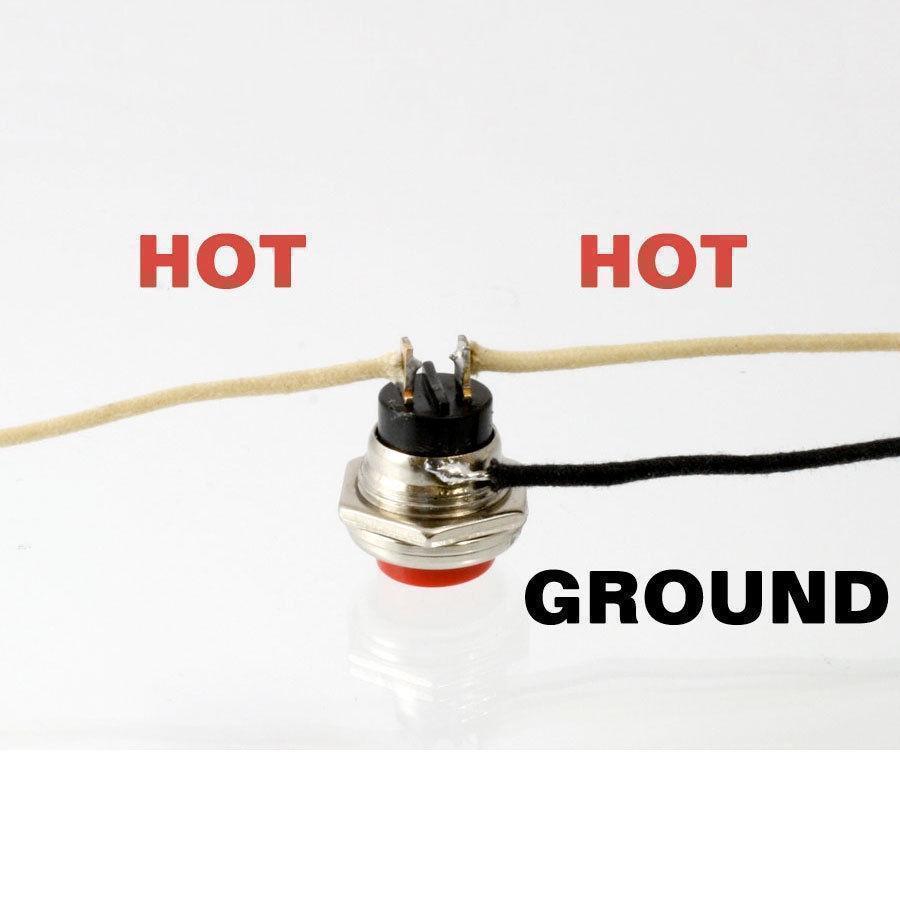

It should first be grounded and then installed in the hot wire to the jack. Even though there is no terminal for grounding, you must still ground the switch. See image for wiring example.
