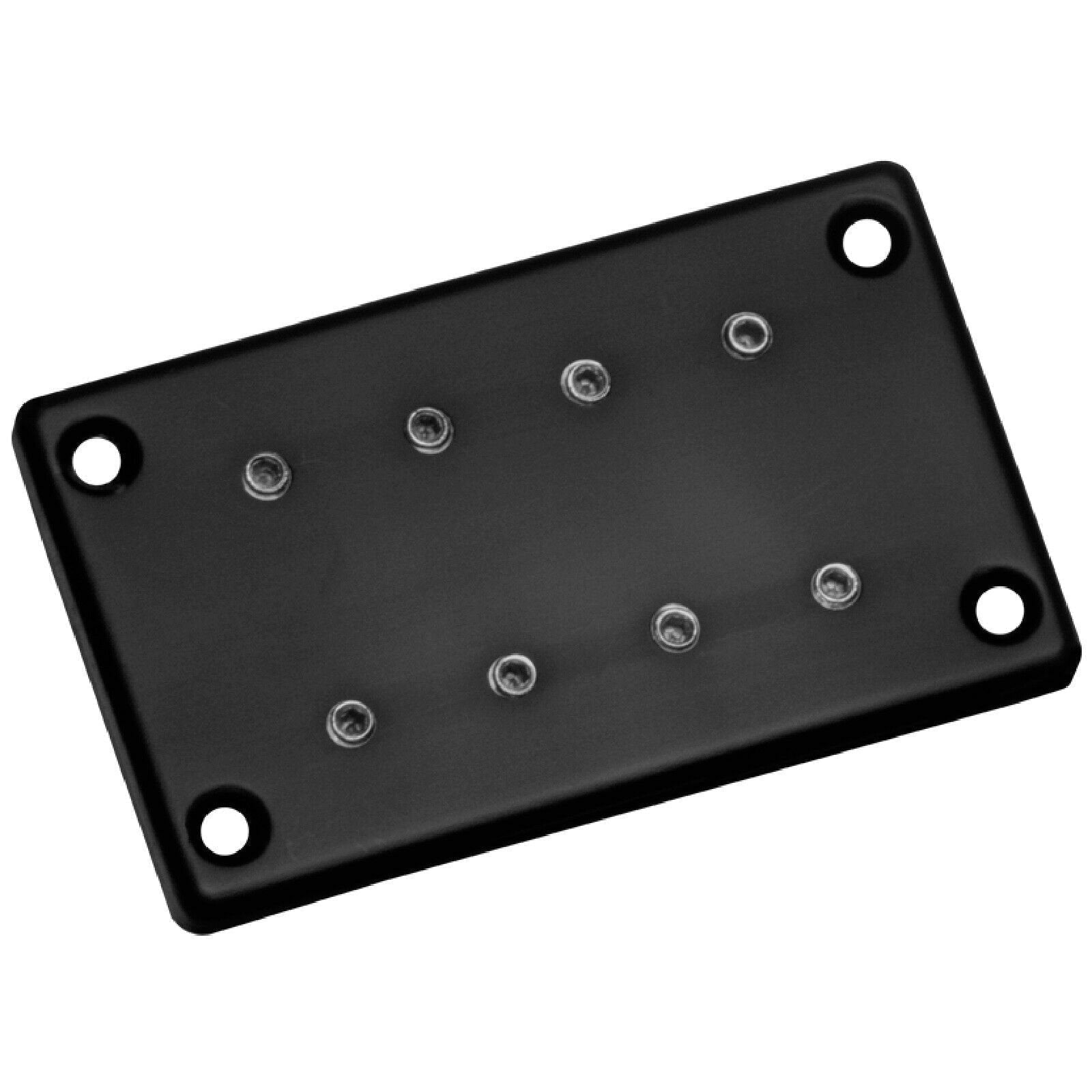

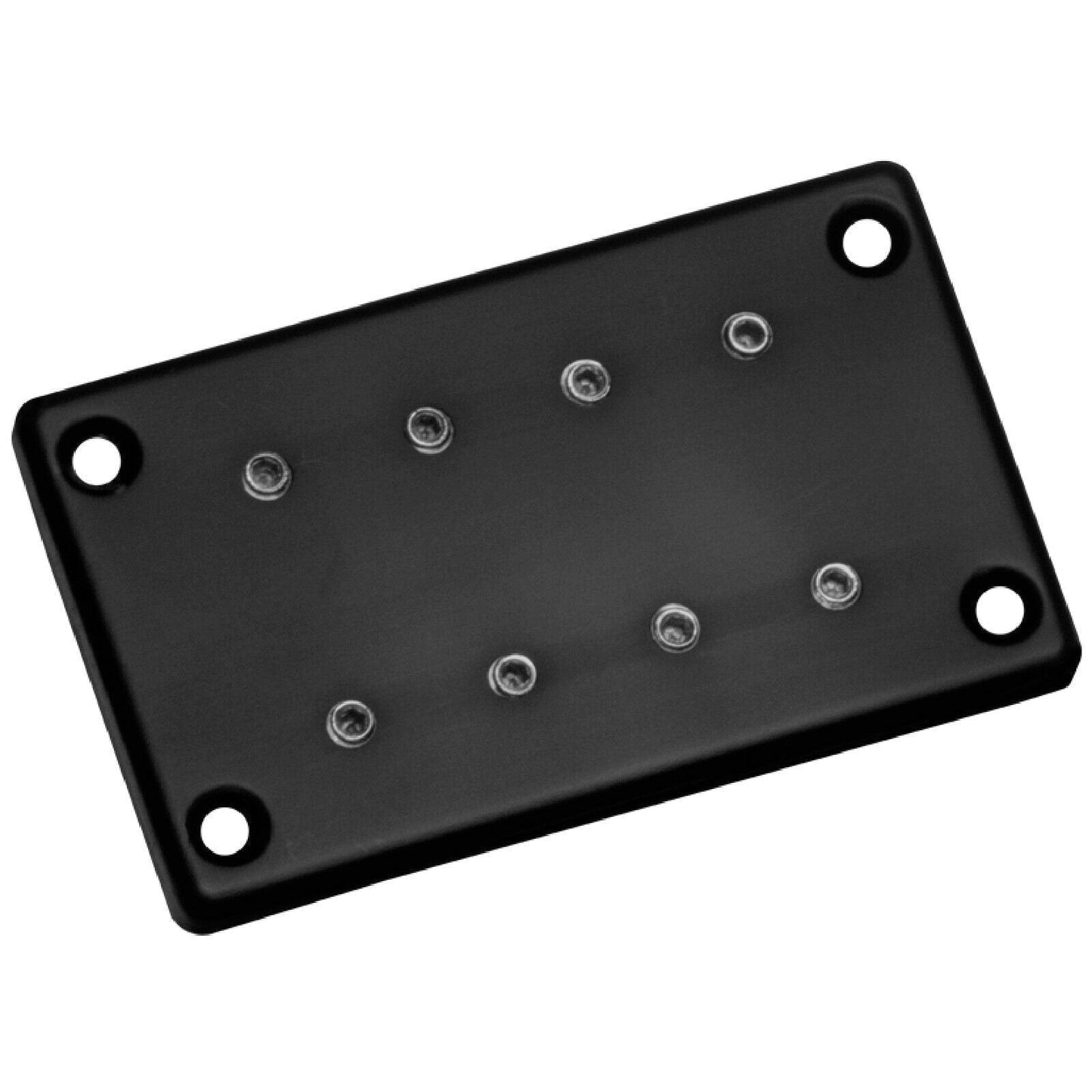

Originally designed as a direct replacement for Gibson® EB series neck
pickups, the Model One has found new life as a woofer/tweeter in
multi-pickup bass setups. By combining the Model One with Split P, DiMarzio Model P®, or DiMarzio Model J
pickups, you can effectively turn your bass into a woofer/tweeter setup
with on-board control of sonic extremes. By sending the Model One to a
rig with an 18-inch speaker cabinet and plugging the other pickups
output into your regular gear, you have the makings of a sound with
earth-moving bottom and crisp, transparent high-end. Whats that sound
like? Check out Billy Sheehan. Its the monstrous sound hes pioneered
thats made rock shake for years.

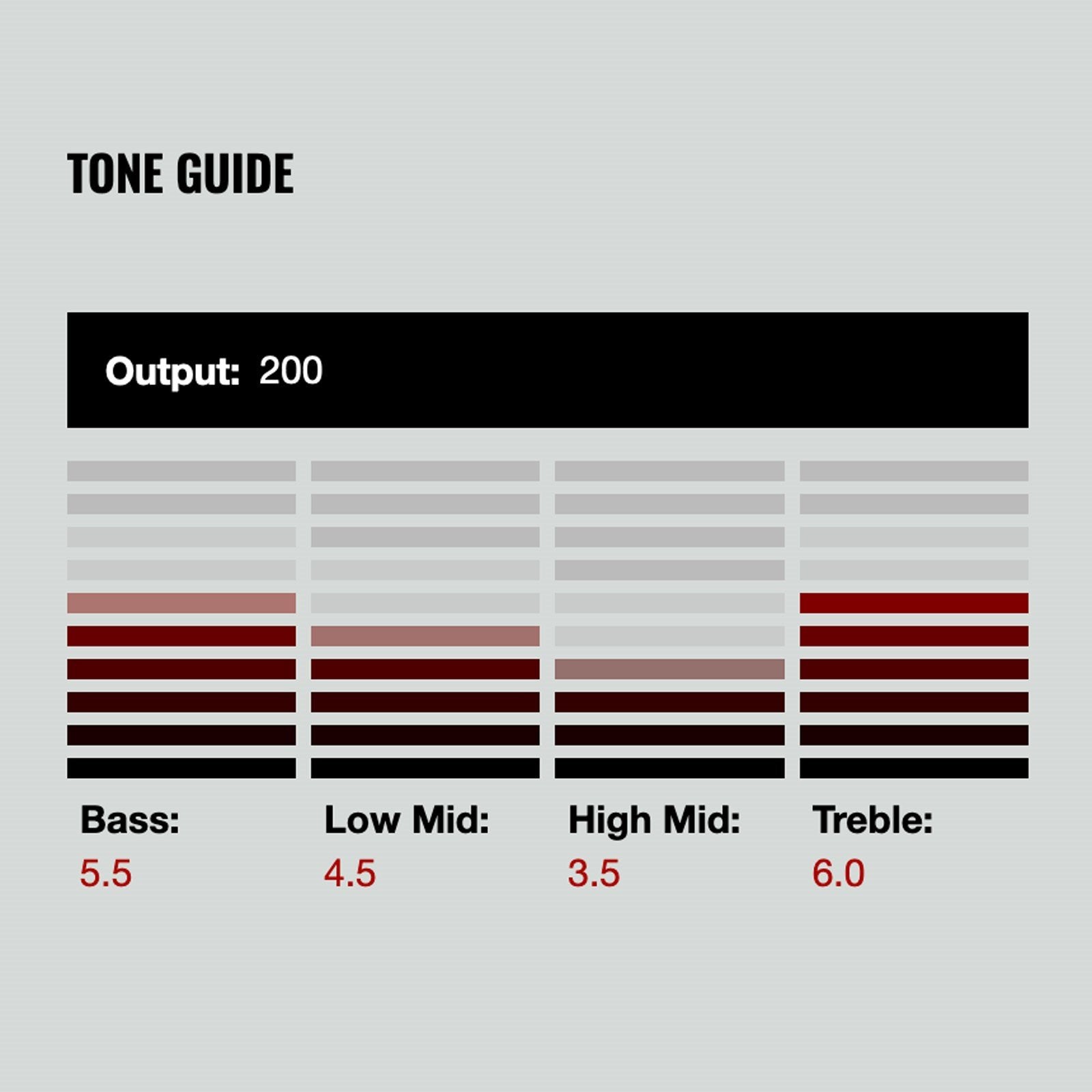

Warm, full tone, no mud. For maximum high-end response, try 500K
controls. For even brighter and cleaner sound, try switching the coils
from series to parallel: the volume drops a bit, but the midrange really
opens up and acquires a more acoustic quality.
- Recommended For Neck position, narrow string spacing.
- Wiring 4 Conductor
- Magnet Ceramic
- Resistance 11.31 Kohm
